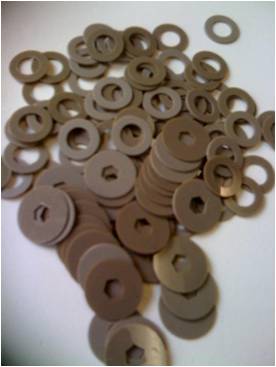

TECAPEEK® stamped washers and parts are made exclusively with Victrex PEEK polymer. TECAPEEK is a unique, semi-crystalline, high temperature thermoplastic. It is an excellent material for a wide spectrum of applications where thermal, chemical, and combustion properties are critical to performance. Especially significant in this regard is TECAPEEK’s ability to retain its flexural and tensile properties at very high temperatures in excess of 250°C (482°F). The addition of glass fiber or carbon fiber reinforcements enhances the mechanical and thermal properties of the basic TECAPEEK® material.
- Excellent flexural, impact, and tensile characteristics
- Very high continuous working temperature
- Very high heat deflection temperature
For unreinforced TECAPEEK™, the HDT @264 psi is 152°C (306°F). The addition of 30% reinforcement results in a dramatic increase to 315°C (600°F).
- Exceptional chemical resistance
TECAPEEK™ is insoluble in all common solvents.
- A superior dielectric at high temperatures and frequencies
- Good radiation resistance
TECAPEEK™ exhibits superior resistance to high doses of gamma radiation.
- Outstanding wear and abrasion resistance
- Low smoke and toxic gas emissions
- Excellent hydrolysis resistance
TECAPEEK™ has an excellent resistance to hydrolysis in boiling water and superheated steam (sterilization/autoclavability) at temperatures in excess of 250°C (482°F).
|Mechanical||Modulus of elasticity (tensile test)||1% Sec, 73°F||650,000||psi||ASTM D 638|
|Tensile strength at yield||@ 73°F||16,000||psi||ASTM D 638|
|Elongation at yield||@ 73°F||4.9||%||ASTM D 638|
|Elongation at break||73°F||40||%||ASTM D 638|
|Flexural strength||@ 73°F||26,000||psi||ASTM D 790|
|Modulus of elasticity (flexural test)||@ 73°F||600,000||psi||ASTM D 790|
|Compression strength||@ 73°F
|17,500||psi||ASTM D 695|
|Notched impact strength (Izod)||@ 73°F||0.95||ft-lbs/in||ASTM D 256|
|Rockwell hardness||M Scale||99||ASTM D 785|
|Coefficient of friction||@ 68°F
1200 in/min, 155 lbs load
|0.18||%||ASTM D 3702||(1) Injection molded specimen|
|Deflection temperature||@ 264 psi||320||°F||ASTM D 648||(1) Injection molded specimen|
|Service temperature||Long Term||480||°F||–||(2) Injection molded specimen|
|Thermal expansion (CLTE)||2.6*10-5||in/in/°F||ASTM D 696||(3) Injection molded specimen|
|Thermal conductivity||1.7||BTU-in/hr-ft2-°F||ASTM C 177||(4) Injection molded specimen|
|Electrical||Specific surface resistivity||1.0*1016||Ω/square||ASTM D 257||(1) Injection molded specimen|
|Volume resistivity||@ 73°F||4.9*1016||Ω*cm||ASTM D 149||(2) Injection molded specimen|
|Dielectric strength||190||V/mil||ASTM D 257||(3) Injection molded specimen|
|Other||Moisture absorption||@ saturation, 73°F||0.5||%||D570|
|Moisture absorption||@ 24 hours, 73°F||0.5||%||ASTM D 570|
|Flammability (UL94)||V-0||%||–||(1) Injection molded specimen 3.0mm|
|This information reflects the current state of our knowledge and is intended only to assist and advise. It is given without obligation or liability. It does not assure or guarantee chemical resistance, quality of products or their suitability in any legally binding way. Values are not minimum or maximum values, but guidelines that can be used for comparative purposes in material selection. They are within the normal range of product properties and do not represent guaranteed property values. Testing under individual application circumstances is always recommended. Data is obtained from extruded shapes material unless otherwise noted. References to FDA compliance refer to the resins from which the products were made unless otherwise noted. All trade and patent rights should be observed. All rights reserved. Data sheet values are subject to periodic review.|
